Home > Bevel Gear Operator> Big torque bevel Gear Actuators


    1. It is easy opening & closing that the gear box are directly mounted on Gate & Globe valve under thrust loads.

    2. The gear box enable efficiency to rise over 90%.which consists of suitable bearing.

    3. Regarding gear,It makes the gear box relax from noise under optimum heat treatment & precise grinding.

    4. It can avoid from waterproof & oil leakage as sophisticated oil seal is used at the through part.Protection Grade Can be IP65.

    5. Hand wheel & stem cover are optional index.

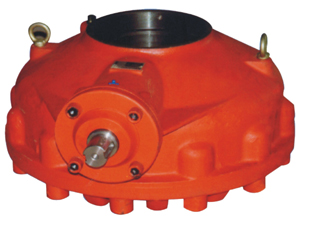

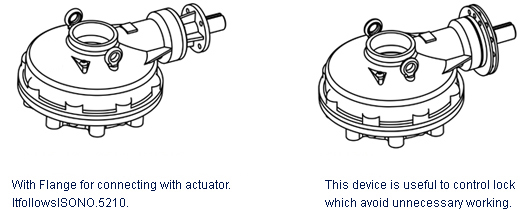

  • big torque bevel Gear Actuatorsbevel Gear Actuator
  • Technical Data Sheet
    ╲          SIZE
      ╲
    MODEL   ╲
    Gear Ratio Max Stem Diameter Max Thrust Capacity Max Output Torque M.A. Weight
    mm KN Kgf N.m Kgf.m ±10% Kg
    RK03 4:1 40 90 9184 350 36 3.6 13
    RK05 4:1 50 135 13776 550 56 3.6 18
    RK1 4:1 60 180 18367 900 92 3.6 25

    2CK2 4.2:1 70 250 25510 1500 153 3.8 33
    2CK3 4.2:1 80 280 28571 2000 204 3.8 48
    2CK5 5:1 95 370 37755 2800 286 4.5 88
    2CK8 6.3:1 110 650 66327 4500 459 5.5 160
    2CK10 7.1:1 130 880 89796 6800 694 6.2 220

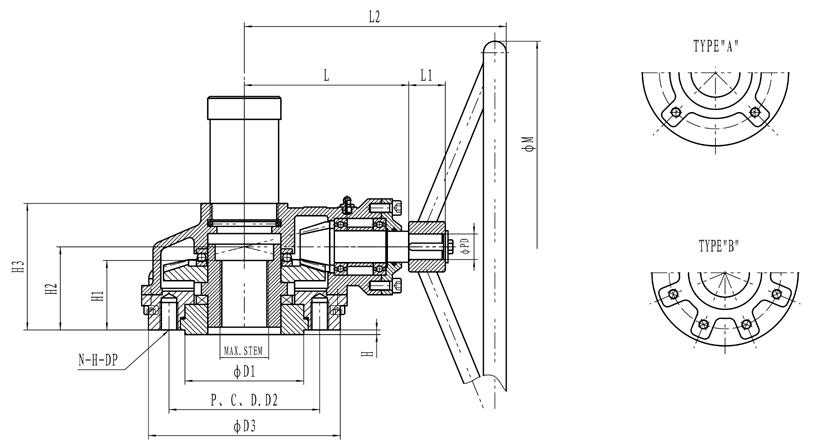

  • DIMENSION Unit:mm
    ╲          DIN
      ╲
    MODEL   ╲
    BASE PART EXTERNAL PART INPUT SHAFT PART HAND WHEEL
    TYPE FLANGE SIZE ΦD1 P.C.D ΦD3  H  H1 H2 H3 L2 L
    D2 N-H-DP L1 ΦPD KEY ΦM
    RK03 A F-12 85 125 4-M12-18 150 3 45 84 110 275 152 26 16 5X5 300
    RK05 F-14 100 140 4-M16-24 175 4 69 96 123 350 170 40 20 6X6 400
    RK1 F-16 130 165 4-M20-30 210 5 76 113 138 370 180 50 30 10X8 500

    2CK2 B (F-20) 140 205 8-M16-24 250 5 89 113 140 342 202 38 32 10X8 550
    2CK3 F-25 200 254 8-M16-24 300 97 127 152 366 226 38 32 10X8 600
    2CK5 F-30 230 298 8-M20-30 350 120 163 188 440 280 44 32 10X8 700
    2CK8 F-35 260 356 8-M30-45 415 150 225 250 515 355 44 38 10X8 800
    2CK10 F-40 300 406 8-M36-54 475 8 176 290 320 675 365 50 50 2-16X10 800
