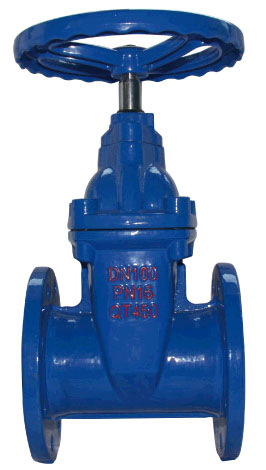

      Wedge Gate Valve

      This kind of flexible wedge gate valves are made from Gray iron(HT200) or Spheroidal graphite cast iron, which is idea on the pipelines for water, sewage, city water, steam, oil, gas,etc.

      Features of Wedge Gate Valves:
       Flat seat design avoid blocking up by stone, sludge, wooden blocks etc.
       Flexible wedge makes high tightness.
       Painted by epoxy, have good corrosion protection.
       The design of stem reduce the resistance of open & close.
       Made from casting iron, is stronger& lighter than traditional ones, easier for maintance.
       Sizes: 2" - 40" or DN50 – DN1000
       Working pressure: PN 16 - PN 160
       Working temperature: 80 C degree
       Medium: normal temperature liquid

      Applicable standards of Rising-stem Wedge Gate Valves:
       Design & Manufacture: API 600, API 6D, BS 1414
       Face to Face: API 6D, ASME B16.10, EN 558, DIN 3202, BS 2080
       Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220
       Test : API 600, API 6D, EN 12266, ISO 5208

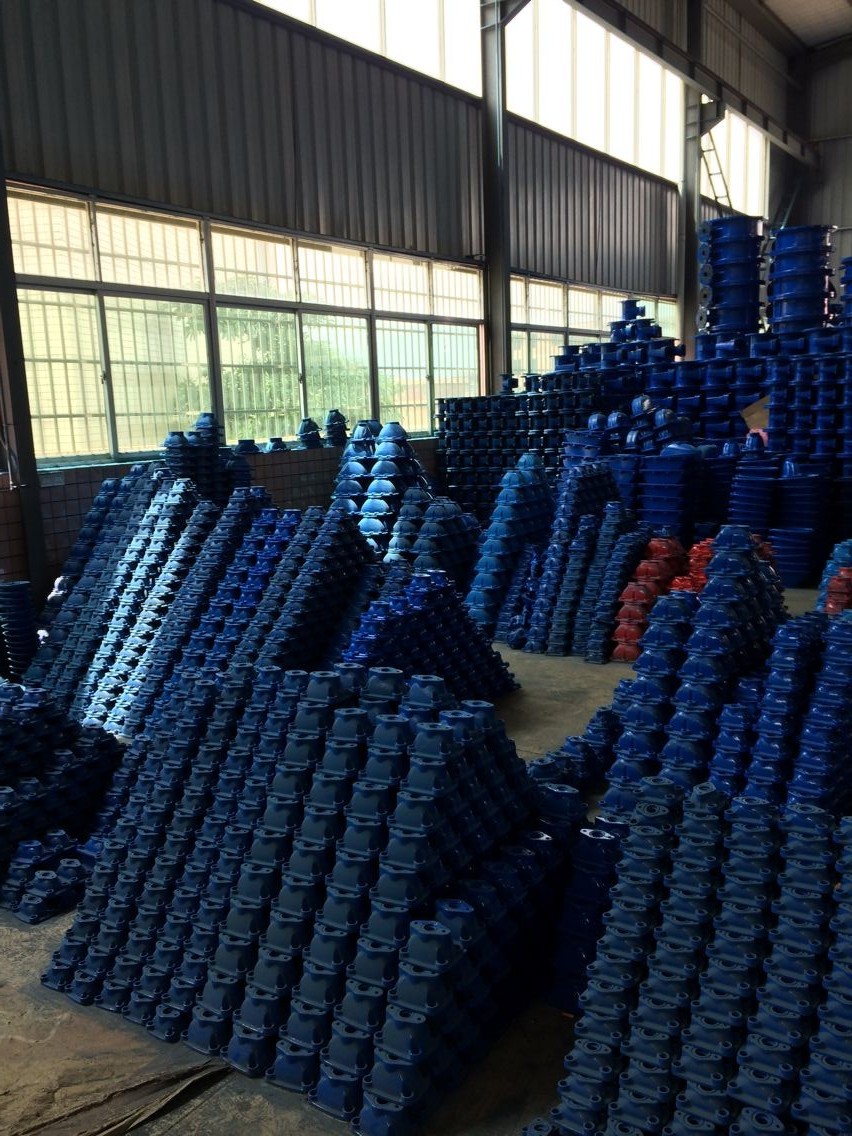

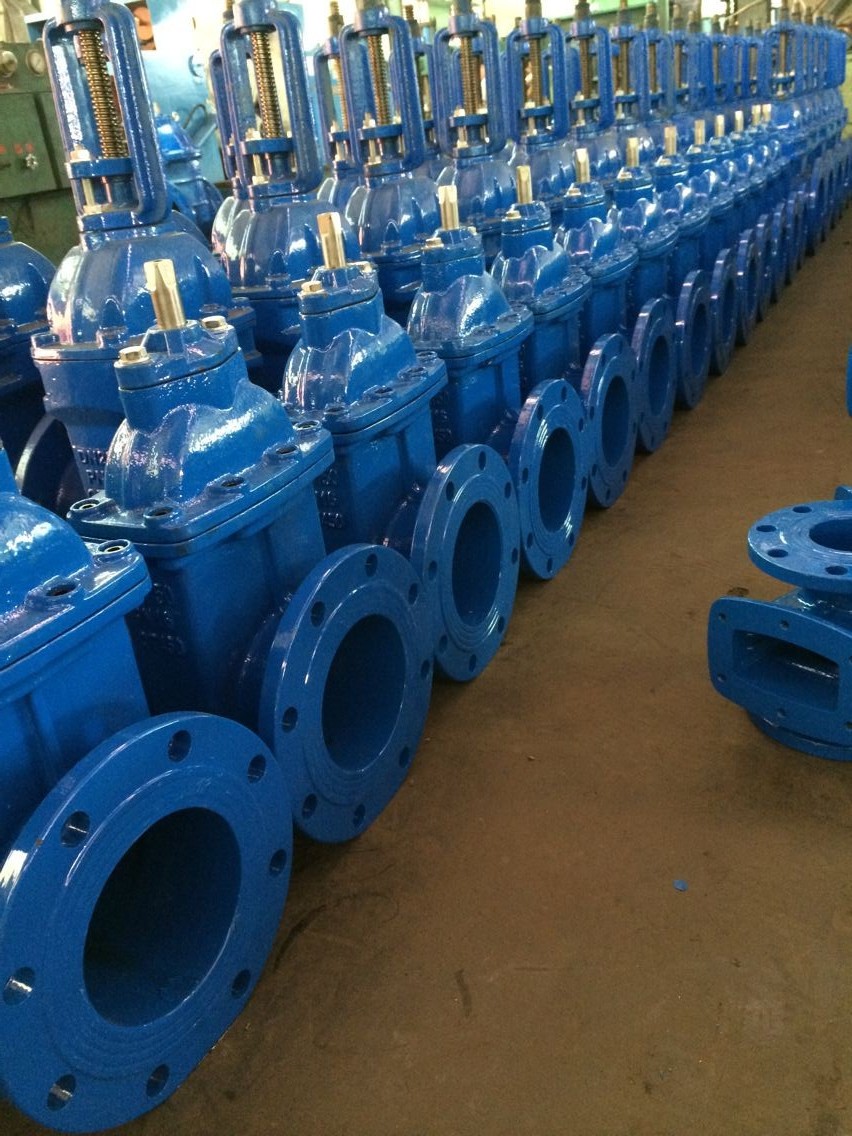

    Procuct really making



    Wedge-Gate-Valve   Wedge-Gate-ValveWedge-Gate-Valve
    Wedge-Gate-ValveWedge-Gate-Valve

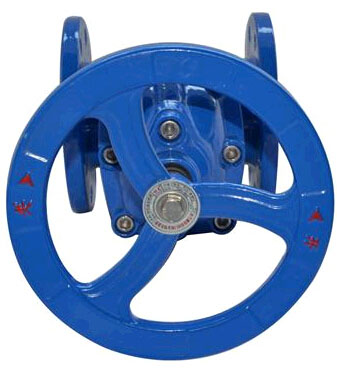

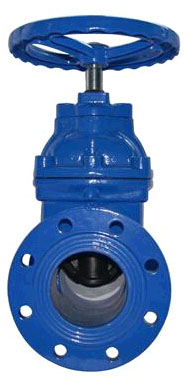

    Product structure




    Main parts and material



    Main parts

    Material

    Housing

    HT200 QT450

    Wedge

    QT450 covered by EPDN

    Bonnet

    HT200 QT450

    Stem

    2Cr13

    Handwheel

    QT450 HT200

    O-ring

    Oil resistant rubber




    The main performance parameters



    Type

    Pressure

    ﹝MPa﹞

    Shell test pressure﹝MPa﹞

    Applicable temperature

    Applicable medium

    shell

    sealing

    Z45X-10/16Q

    1.0

    1.5

    1.1

    ≤80℃

    Water, oil,

    Sewage, wate

    1.6

    2.4

    1.76

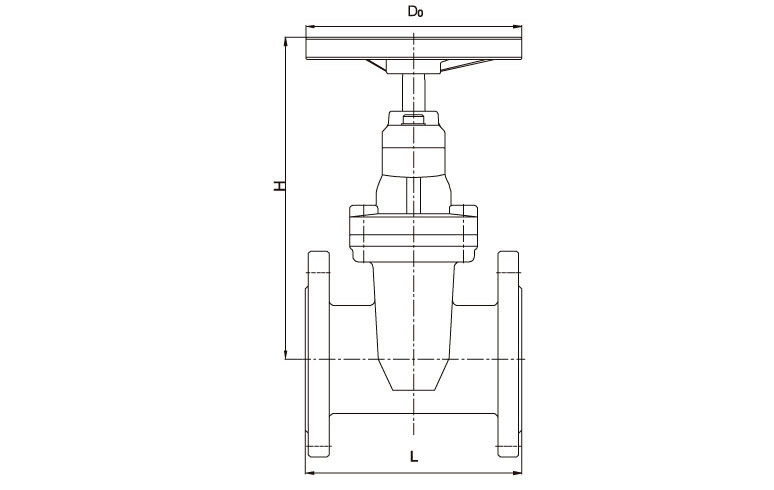

    The main dimensions


    DN(mm)

    SIZE(mm)

    L

    D0

    H

    50

    178

    175

    240

    65

    190

    175

    270

    80

    203

    200

    310

    100

    229

    200

    330

    125

    254

    240

    380

    150

    267

    270

    460

    200

    292

    305

    530

    250

    330

    360

    680

    300

    356

    360

    720

    350

    381

    360

    830

    400

    406

    450

    950

    450

    432

    450

    1020

    500

    457

    660

    1250

    600

    508

    660

    1305

    700

    610

    750

    1550

    800

    660

    850

    1750

    900

    711

    1950

    1000

    811

    2170

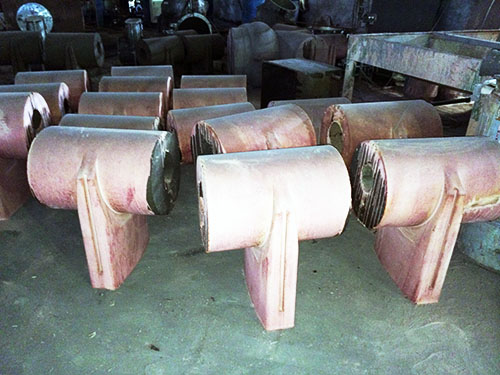

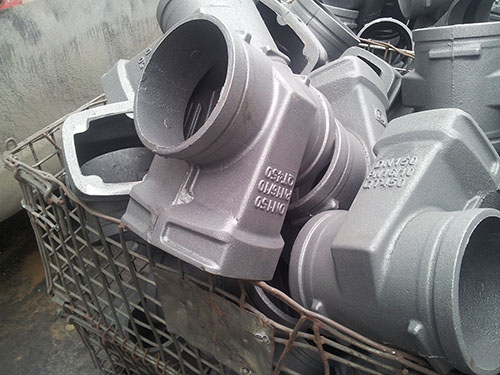

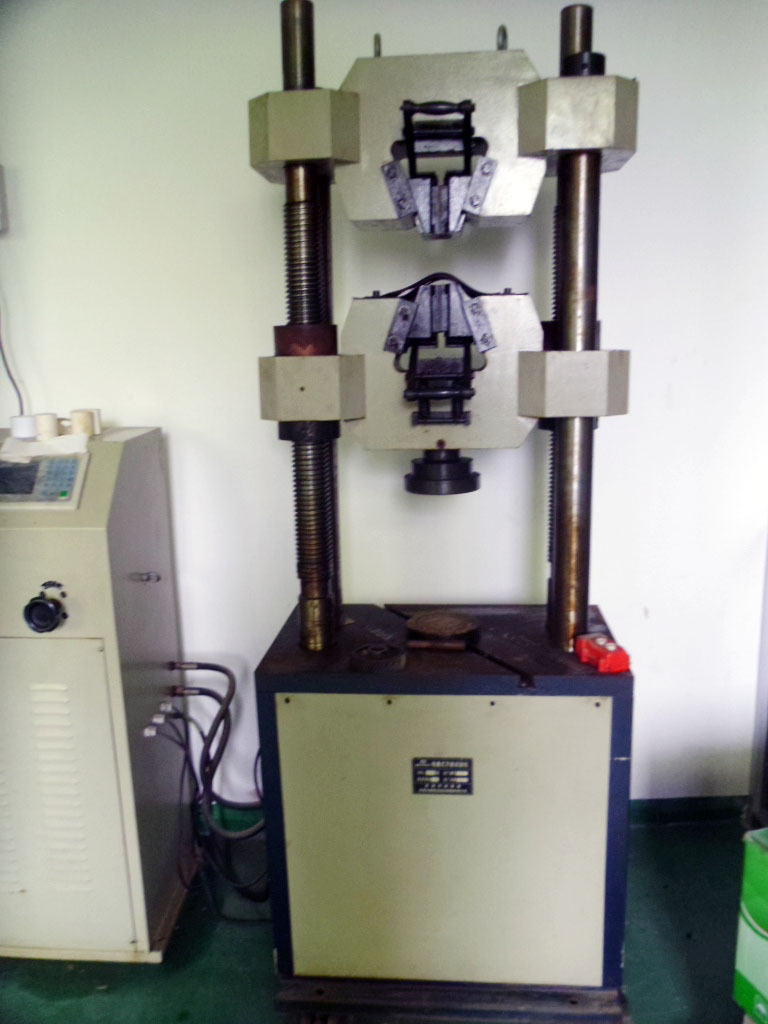

    Treatment Of Casting


    Wedge-Gate-ValveWedge-Gate-Valve11
    Wedge-Gate-Valve partWedge-Gate-Valve part
