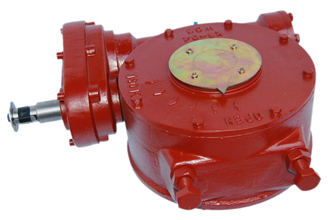

Home > Worm Gear Operator> Double stage worm gear actuator

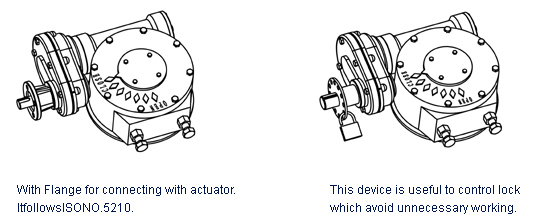

1. Worm gear box adapts to I.S.O standard so that ia can change parts easily..
2. Housing of worm gear box made by casting,moreover.it bears up against thrust due to superior quality and sophisticated design.
3. Regarding gear,It makes the gear box relax from noise under optimum heat treatment & precise grinding.
4. Stem nut(bush) is not uni-body but separated so that isolable type enable bush to be convenient,efficient and so on.
5. Protection Grade Can be IP65.
6. Hand wheel is optional index.
  • Technical Data Sheet
  • ╲          SIZE
      ╲
    MODEL   ╲
    Gear Ratio Max Stem Diameter(mm) Mounting Standard Max Output Torque M.A. Weight
    N.m Kgf.m ±10% Kg
    SBWG-0-1S 72:1 35(12X8) F-12 1000 102 19.4 13
    SBWG-01-1S 85:1 45(14X9) F-14 1850 188 22.1 16
    SBWG-02-1S 77:1 55(18X11) F-16 3000 306 21.5 33

    SBWG-03-1S 94:1 65(20X12) (F-20) 4680 408 25.3 41
    SBWG-04-1S 107:1 80(22X14) F-25 6500 663 26.7 60
    SBWG-05-1S 106:1 105(28X16) F-30 10000 1020 26.5 100
    SBWG-06-1S 118:1 115(32X18) F-35 15000 1531 29.5 120
  • DIMENSION Unit:mm
  •   DIN
      ╲
    MODEL   ╲
    BASE PART EXTERNAL PART INPUT SHAFT PART HAND WHEEL
    TYPE FLANGE SIZE ΦD1 P.C.D ΦD3  H  H1 H2 K K1 K2 K3 L L1
    D2 N-H-DP L2 ΦPD KEY ΦM
    SBWG-0-1S A F-12 85 125 4-M12-18 150 3 66 196 89 47 47 230 83 161 30 21 6 300
    SBWG-01-1S F-14 100 140 4-M16-24 175 4 75 221 89 45 58 285 92 170 35 21 6 350
    SBWG-02-1S F-16 130 165 4-M20-30 210 5 92 283 108 63 62 330 113 198 35 21 6 450

    SBWG-03-1S B (F-20) 140 205 8-M16-24 250 5 111 322 110 57 60 360 125 211 40 28 8 500
    SBWG-04-1S F-25 200 254 8-M16-24 300 145 388 140 80 100 455 155 260 40 28 8 600
    SBWG-05-1S F-30 230 298 8-M20-30 350 160 404 140 70 102 515 197 294 50 28 8 650
    SBWG-06-1S F-35 260 356 8-M30-45 415 200 510 179 90 112 534 230 338 50 28 8 700
