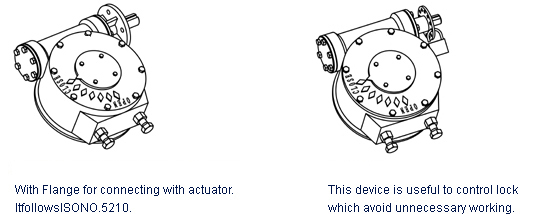

1. Worm gear box adapts to I.S.O standard so that ia can change parts easily..
2. Housing of worm gear box made by casting,moreover.it bears up against thrust due to superior quality and sophisticated design.
3. Regarding gear,It makes the gear box relax from noise under optimum heat treatment & precise grinding.
4. Stem nut(bush) is not uni-body but separated so that isolable type enable bush to be convenient,efficient and so on.
5. Protection Grade Can be IP65.
6. Hand wheel is optional index.
Quick Links:
Wedge Gate Valve, bevel gear actuator, worm gear actuator, double stage worm gear actuator, pneumatic actuator,
special operator, gear actuator for valve, flange
2. Housing of worm gear box made by casting,moreover.it bears up against thrust due to superior quality and sophisticated design.
3. Regarding gear,It makes the gear box relax from noise under optimum heat treatment & precise grinding.
4. Stem nut(bush) is not uni-body but separated so that isolable type enable bush to be convenient,efficient and so on.
5. Protection Grade Can be IP65.
6. Hand wheel is optional index.
-
Technical Data Sheet -
╲ SIZE
╲
MODEL ╲Gear Ratio Max Stem Diameter Mounting Standard Max Output Torque M.A. Weight N.m Kgf.m ±10% Kg SBWG-00 33:1 28(8X7) F-10 500 51 10 6 SBWG-0 39:1 35(10X8) F-12 980 100 11.7 10 SBWG-01 46:1 45(14X9) F-14 1400 143 13.8 13 SBWG-02 49:1 55(18X11) F-16 2500 255 17.1 22 SBWG-03 60:1 65(20X12) (F-20) 4000 478 19 31 SBWG-04 68:1 80(22X14) F-25 6050 617 20 50 SBWG-05 59:1 105(28X16) F-30 7000 714 17.5 80 SBWG-06 67:1 115(32X18) F-35 8500 867 20 90 -
-

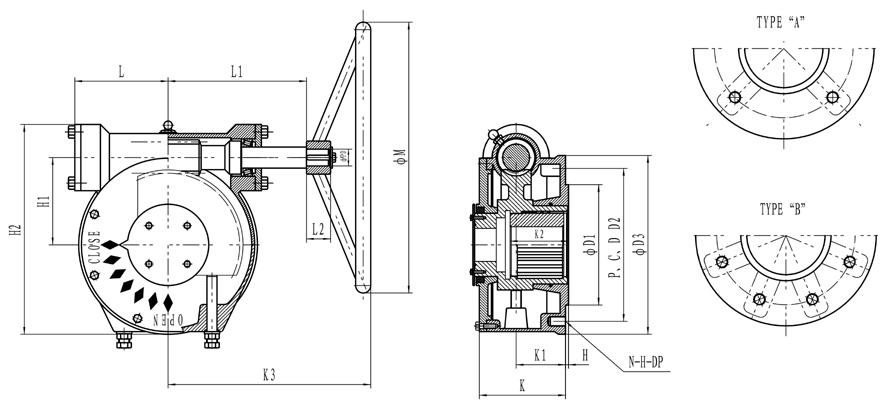

DIMENSION Unit:mm -
DIN
╲
MODEL ╲BASE PART EXTERNAL PART INPUT SHAFT PART HAND WHEEL TYPE FLANGE SIZE ΦD1 P.C.D ΦD3 H H1 H2 H3 K L2 L D2 N-H-DP L1 ΦPD KEY ΦM SB-V2-1S A (F-20) 140 205 8-M16-24 250 5 75 90 160 270 445 305 40 28 8X7 450 SB-V3-1S F-25 200 254 8-M16-24 300 85 100 170 290 470 330 40 28 8X7 500 SB-V35-1S F-30 230 298 8-M20-35 350 105 140 225 315 550 390 40 28 8X7 600 SB-V5-1S F-35 260 356 8-M30-45 415 145 155 280 385 655 480 50 38 10X8 700 SB-V6-1S F-40 300 406 8-M36-54 475 8 165 210 335 420 675 500 50 38 10X8 700 SB-V7-1S B F-48 370 483 12-M36-54 560 8 195 220 360 510 750 550 50 45 12X10 800 SB-V8-1S C F-60 470 603 20M36-54 686 8 200 250 380 540 810 610 50 45 12X10 800
